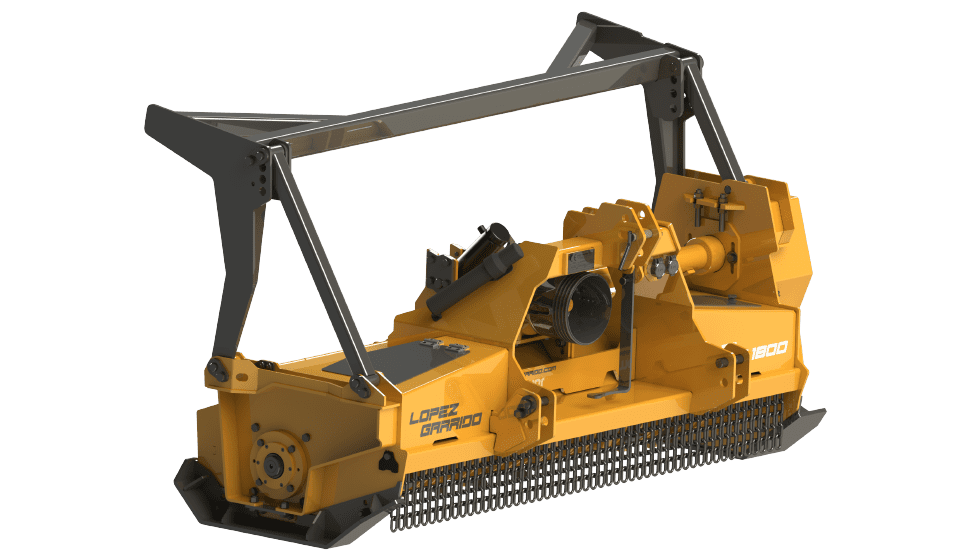

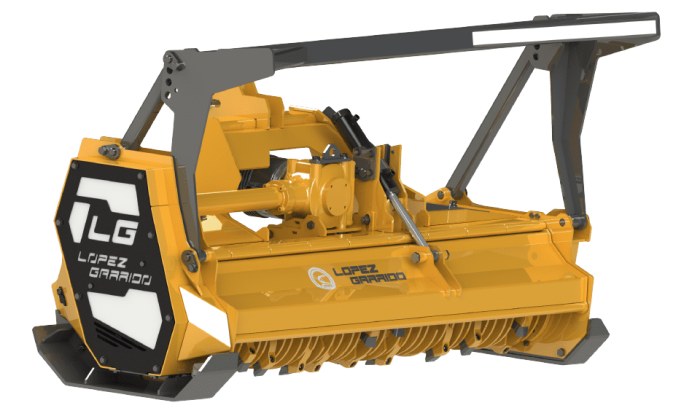

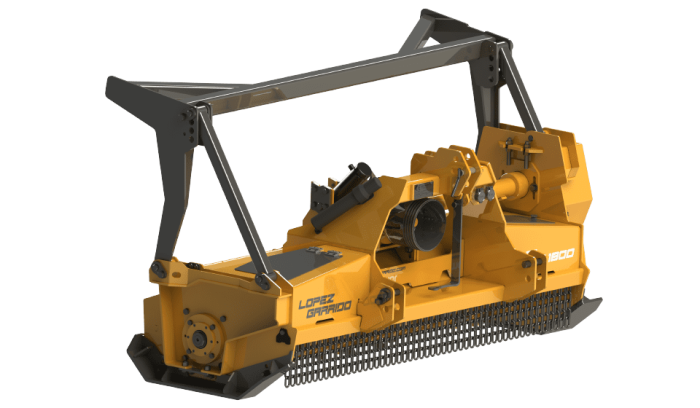

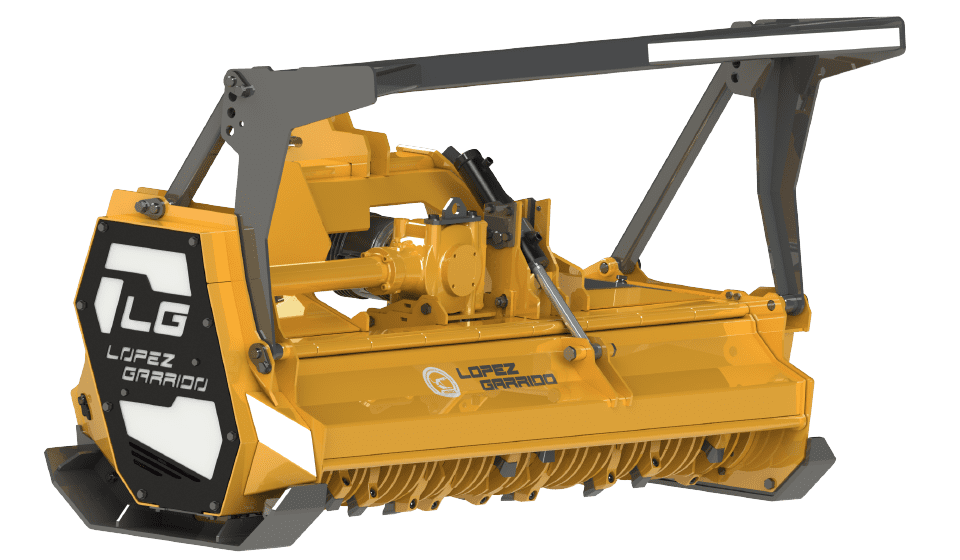

The López Garrido TFM180 tractor PTO forestry mulcher is the wider-cut model in the TFM range, designed for forestry work on large areas where each pass needs to cover as much ground as possible. With a 1,800 mm working width and 40 hammers on the rotor, it significantly reduces the number of passes required compared to narrower models, saving time and fuel.
The Strenx/Hardox steel frame withstands the intense mechanical stress of forestry work. The 365 mm rotor with depth limiter ensures controlled shredding without risk of damage on contact with stones or obstacles hidden in vegetation. The 40 fixed hardened hammers and 3 rows of Hardox counter-knives produce finely shredded material with every pass.

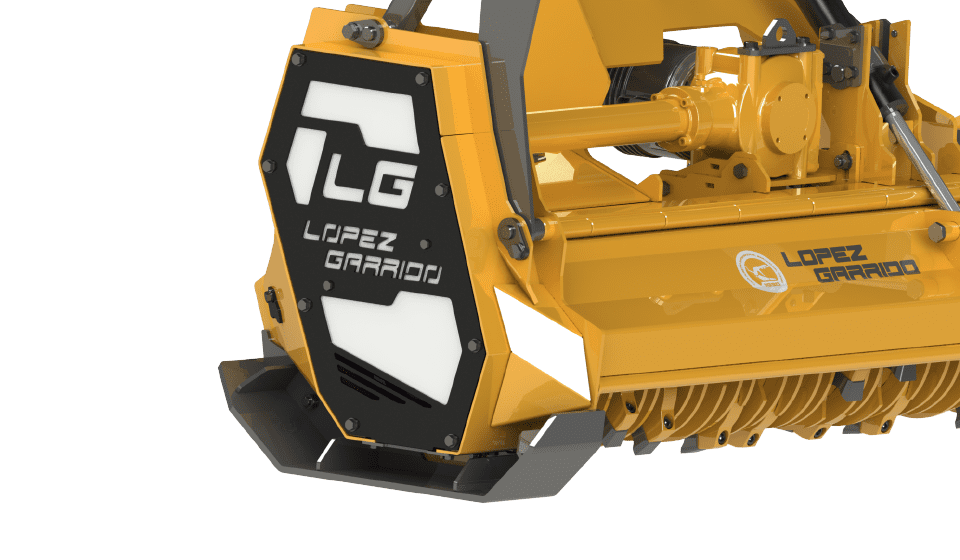

Side transmission through 4 XPB belts and the freewheel gearbox with 1"3/4 Z6 shaft ensures smooth operation at 540 rpm. The reinforced driveshaft is included and handles the demands of a medium to high-power tractor. The hydraulic rear gate, front protection and height-adjustable skids complete the standard equipment.
It attaches via the Cat II linkage and requires a 50–100 HP tractor. Integrated toolboxes on the frame provide quick access to maintenance tools directly in the field.
| Specification | Value |
|---|---|
| Model | TFM180 |
| Product code | 3822160003 |
| Working width | 1,800 mm |
| Overall width | 2,100 mm |
| Height | 1,330 mm |
| Length | 940 mm |
| Number of hammers | 40 |
| Rotor diameter | 365 mm |
| Maximum branch diameter | 18 cm |
| Required tractor power | 50 – 100 HP |
| Weight | 860 kg |
| Rotation speed | 540 rpm |
| Side transmission | 4 XPB belts |
| Driveshaft | Reinforced, included |
| Attachment system | Cat II |
| Rear gate | Hydraulic |
| Frame material | Strenx/Hardox steel |
| Certification | CE |
